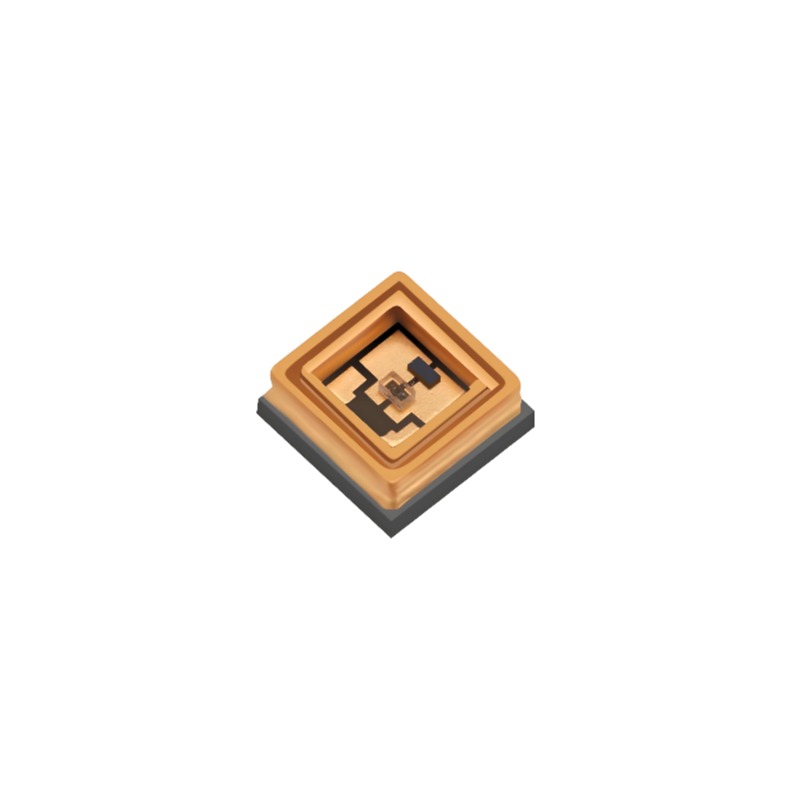

5050 UVC LEDs
5050 UVC LEDs | 5050 PURPLE DIODE | SMD UVC LEDs
Type: 5050 UV LEDs
Size: 5.0mm x 5.0mm
Power: 1.0-3.0W
Voltage: 3.8-7.0V
Wavelength: 250-340nm
Current:40-350mA
RADIANT: 30-90(mW/sr)
Lens:Clear waterPackaging substrate: ceramic alumina eutectic
Wire: high purity 99.99% gold wire, gold (Au)
Chip material: Si、GaAs
Chip brand: Samsung, Epistar, San'an, HC Semitek,
Chip specifications: size 10mil -45mil etc.;
Divergence angle: 120°
Certification standards: ROHS, REACH, EN60471.
Working temperature: -40°C to +85°C
OVERVIEW
They mainly emit UVC light in the 200–280nm
band. They have the characteristics of high efficiency sterilization, mercury-free and environmentally friendly, and long life.
They are widely used in water/air purification, medical disinfection, and industrial surface treatment.
FEATURES
High efficiency sterilization performance: Wavelength selection: 265nm (optimal sterilization wavelength), radiation power of 115–155mW,
and electro-optical conversion efficiency (WPE) of up to 5.3%.
Sterilization dose: The inactivation efficiency of 265nm wavelength for pathogens (such as bacteria and viruses) is significantly better than
that of traditional mercury lamps.
Innovative package design Open ceramic package with integrated reflector (120° emitting angle), no cover glass required, and reduced optical loss.
Based on AlGaN flip chip technology, it supports highly flexible wavelength adjustment (such as 275nm for industrial use). High reliability and lifespan
APPLICATION
Water/air purification
Dynamic water sterilization (water purification equipment), air disinfection of air conditioning systems (265nm efficient inactivation of pathogens).
Medical and surface disinfection
Medical device surface sterilization, UV-C therapy device (such as phototherapy for skin diseases).
Industrial curing and testing
PCB coating curing (275nm), fluorescent flaw detection (365nm near-ultraviolet optional)
5050 UVC LEDs | 5050 PURPLE DIODE | SMD UVC LEDs
Queendom LED product performance at Tj=25°C.
| RODUCT | RANK NO. | TYPICAL [1] | WAVELENGTH [2] (nm | RADIOMETRIC [3] (mW) | VOLTAGE [4] (Vf) | DEG | TEST (mA) | PART NUMBER | |||
| NM | MIN | MAX | MIN | MAX | MIN | MAX | 2Ө 1/2 | ||||
| HP5050V1WE | UVSL1501 | 254 | 250 | 270 | 30 | 50 | 4.50 | 7.00 | 120 | 350 | 8541401000UVSL1501 |
| HP5050V3WE | UVSL1502 | 275 | 270 | 290 | 40 | 60 | 4.50 | 7.00 | 120 | 350 | 8541401000UVSL1502 |
| HP5050V7WE | UVSL1503 | 310 | 310 | 340 | 50 | 80 | 4.50 | 7.00 | 120 | 350 | 8541401000UVSL1503 |
| HP5050V1WF | UVSL1509 | 254 | 250 | 270 | 40 | 60 | 4.50 | 7.00 | 120 | 500 | 8541401000UVSL1509 |
| HP5050V3WF | UVSL1510 | 275 | 270 | 290 | 50 | 70 | 4.50 | 7.00 | 120 | 500 | 8541401000UVSL1510 |
| HP5050V7WF | UVSL1511 | 310 | 310 | 340 | 70 | 90 | 4.50 | 7.00 | 120 | 500 | 8541401000UVSL1511 |
