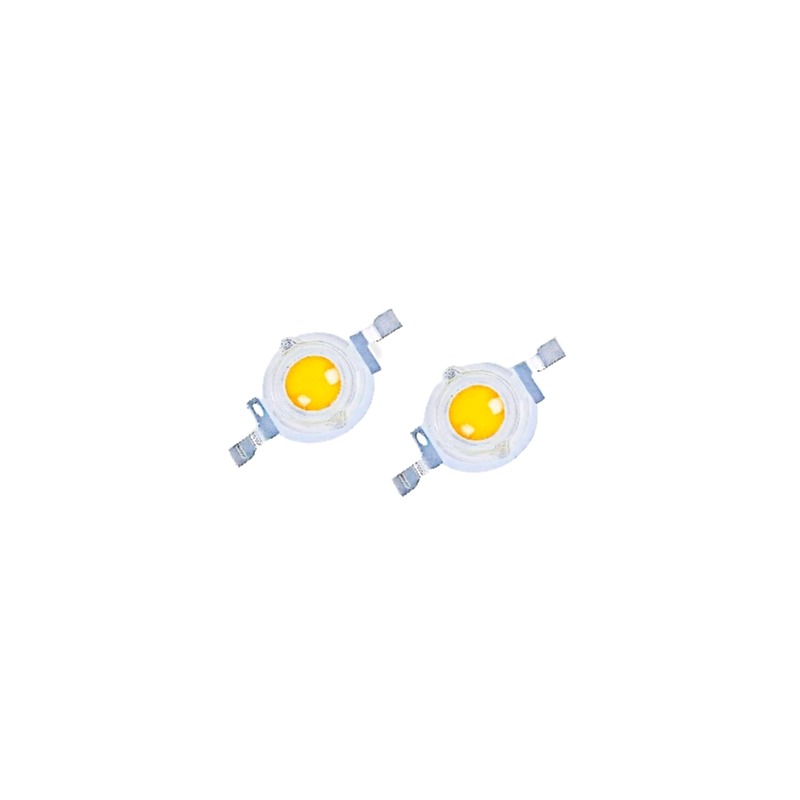

HIGH POWER WHITE LEDs
HIGH POWER WHITE LEDs
Lens:Clear water
Package substrate: copper
Chip material: GaN.
OVERVIEW
High Power LED is a kind of lighting equipment with high brightness and high efficiency.High-power LED is a high-brightness light-emitting diode with high luminous efficiency and long life. It uses advanced technology and materials to produce bright and stable light
High power imitation lumen LEDs are usually between 1 watt and 5 watts.
The lighting angle can be selected according to the needs, generally there are options such as 30 degrees, 60 degrees and 120 degrees.
There are many choices of luminous color, including white light, warm white light and colored light, etc.
The chips of high-power lumen-like LEDs are usually made of semiconductor materials such as gallium nitride (GaN).
High-power lumen-like LED has high luminous efficiency, which can convert electrical energy into visible light and reduce energy waste.
Small light decay: The light decay speed of high-power imitation lumen LED is slow, and the service life can keep the brightness stable for a long time.
APPLICATION
High-power lumen-like LEDs are widely used in indoor and outdoor lighting fields, such as home lighting, commercial lighting, and landscape lighting.
Due to its high brightness, energy saving and environmental protection, high power imitation lumen LEDs are also commonly used in automotive lighting, stage lighting and billboard lighting and other fields.
High-power lumen-like LEDs can also be used for special purposes such as plant growth lights and night lights.
HIGH POWER WHITE LEDs
Product performance of Queendom LEDs at 350ma Atest current, Tj=25°C
| PRODUCT | RANK | NOMINAL | CRI | FLUX (lm) | VOLTAGE (Vf) | EFFICACY | TYPICAL | TEST | PART NUMBER | ||
| CCT/K | [2] Ra | MIN | MAX | MIN | MAX | (lm/W) | 2Ө 1/2 | (mA) | |||
| PWY2WE | HP0401 | 2700K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0401 |
| PWV2WE | HP0402 | 3000K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0402 |
| PWU2WE | HP0403 | 3500K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0403 |
| PWT2WE | HP0404 | 4000K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0404 |
| PWR2WE | HP0405 | 5000K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0405 |
| PWQ2WE | HP0406 | 5700K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0406 |
| PWP2WE | HP0407 | 6500K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0407 |
| PWD2WE | HP0408 | 7600K | 80 | 100 | 160 | 2.8 | 3.2 | 130 | 120 | 300 | 8541401000HP0408 |
| PWY2WF | HP0409 | 2700K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0409 |
| PWV2WF | HP0410 | 3000K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0410 |
| PWU2WF | HP0411 | 3500K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0411 |
| PWT2WF | HP0412 | 4000K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0412 |
| PWR2WF | HP0413 | 5000K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0413 |
| PWQ2WF | HP0414 | 5700K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0414 |
| PWP2WF | HP0415 | 6500K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0415 |
| PWD2WF | HP0416 | 7600K | 80 | 190 | 240 | 2.8 | 3.2 | 130 | 120 | 700 | 8541401000HP0416 |
