OVERVIEW

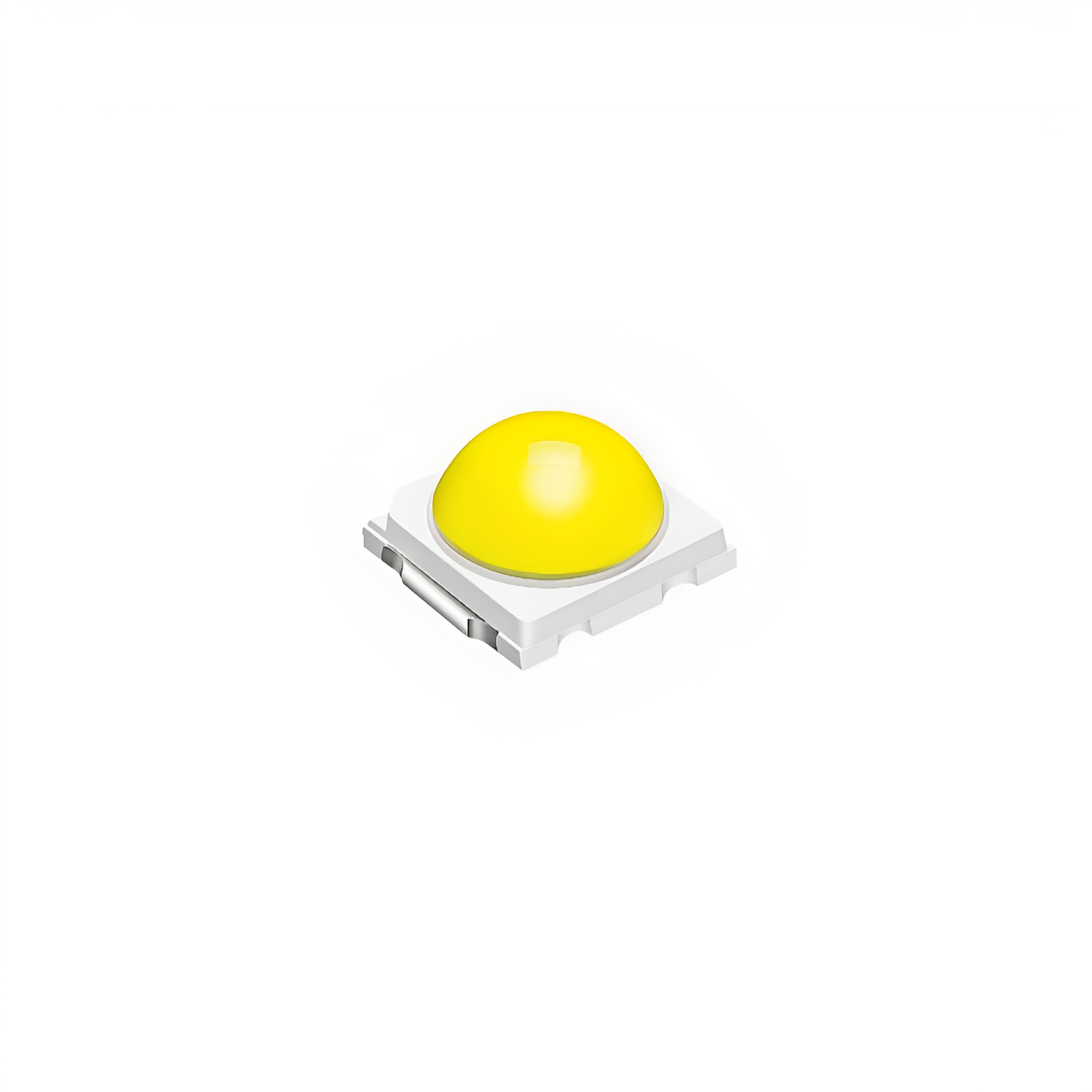

Queendom 7070 LED is a multi-chip high-power LED in a high-power ceramic package; provides high brightness in an ultra-rugged package, composed of multiple chips, available for monochromatic light, RGB, RGBW, or white light; quad-core parallel design available Designed for cost-effective single light and directional luminaires, this product conducts heat 10 times faster than analog lumens.
FEATURES
Display Index: available in 70CRI, 80CRI and 90CRI,Compatible with multiple voltage configurations: LED has multiple voltage configurations of 3V, 6V, and 24V, and is compatible with low-cost and high-efficiency drivers
BENEFITS
High brightness, low power consumption and long life
Easy to install: small size, light weight, convenient installation
Excellent heat dissipation design: Use low Rth materials for effective heat dissipation design to improve efficiency.
APPLICATION
Indoor and outdoor lighting such as home lighting, commercial lighting and street lighting
Commonly used in products such as displays, and billboards
Automobile: instrument panel, brake light, turn signal.
Biomedical optics, instrumentation and equipment testing
Status indicators: consumer electronics and industrial electronics.
Security, infrared monitoring, night vision.
7070 LEDs | 7070 Parts
Product performance of QUEENDOM 7070 LEDs 3V@1000mA, 12V@350mA and Tj=25°C.
| PRODUCT | RANK | NOMINAL | CRI | FLUX (lm) | VOLTAGE (Vf) | EFFICACY | TYPICAL | TEST | PART NUMBER | ||
| CCT/K | [2] Ra | MIN | MAX | MIN | MAX | (lm/W) | 2Ө 1/2 | (mA) | |||
| HP7070WY2WF | HP0301 | 2700K | 80 | 190 | 240 | 2.80 | 4.60 | 135 | 120 | 700 | 8541401000HP0301 |
| HP7070WV2WF | HP0302 | 3000K | 80 | 190 | 240 | 2.80 | 4.60 | 140 | 120 | 700 | 8541401000HP0302 |
| HP7070WU2WF | HP0303 | 3500K | 80 | 190 | 240 | 2.80 | 4.60 | 143 | 120 | 700 | 8541401000HP0303 |
| HP7070WT2WF | HP0304 | 4000K | 80 | 190 | 240 | 2.80 | 4.60 | 150 | 120 | 700 | 8541401000HP0304 |
| HP7070WR2WF | HP0305 | 5000K | 80 | 190 | 240 | 2.80 | 4.60 | 155 | 120 | 700 | 8541401000HP0305 |
| HP7070WQ2WF | HP0306 | 5700K | 80 | 190 | 240 | 2.80 | 4.60 | 160 | 120 | 700 | 8541401000HP0306 |
| HP7070WP2WF | HP0307 | 6500K | 80 | 190 | 240 | 2.80 | 4.60 | 165 | 120 | 700 | 8541401000HP0307 |
| HP7070WD2WF | HP0308 | 7600K | 80 | 190 | 240 | 2.80 | 4.60 | 130 | 120 | 700 | 8541401000HP0308 |
| HP7070WY2WG | HP0309 | 2700K | 80 | 210 | 430 | 4.80 | 6.90 | 135 | 120 | 1000 | 8541401000HP0309 |
| HP7070WV2WG | HP0310 | 3000K | 80 | 210 | 430 | 4.80 | 6.90 | 140 | 120 | 1000 | 8541401000HP0310 |
| HP7070WU2WG | HP0311 | 3500K | 80 | 210 | 430 | 4.80 | 6.90 | 143 | 120 | 1000 | 8541401000HP0311 |
| HP7070WT2WG | HP0312 | 4000K | 80 | 210 | 430 | 4.80 | 6.90 | 150 | 120 | 1000 | 8541401000HP0312 |
| HP7070WR2WG | HP0313 | 5000K | 80 | 210 | 430 | 4.80 | 6.90 | 155 | 120 | 1000 | 8541401000HP0313 |
| HP7070WQ2WG | HP0314 | 5700K | 80 | 210 | 430 | 4.80 | 6.90 | 160 | 120 | 1000 | 8541401000HP0314 |
| HP7070WP2WG | HP0315 | 6500K | 80 | 210 | 430 | 4.80 | 6.90 | 165 | 120 | 1000 | 8541401000HP0315 |
| HP7070WD2WG | HP0316 | 7600K | 80 | 210 | 430 | 4.80 | 6.90 | 130 | 120 | 1000 | 8541401000HP0316 |
| HP7070WY8WI | HP0317 | 2700K | 80 | 360 | 640 | 9.00 | 12.00 | 135 | 120 | 1400 | 8541401000HP0317 |
| HP7070WV8WI | HP0318 | 3000K | 80 | 360 | 640 | 9.00 | 12.00 | 140 | 120 | 1400 | 8541401000HP0318 |
| HP7070WU8WI | HP0319 | 3500K | 80 | 360 | 640 | 9.00 | 12.00 | 143 | 120 | 1400 | 8541401000HP0319 |
| HP7070WT8WI | HP0320 | 4000K | 80 | 360 | 640 | 9.00 | 12.00 | 150 | 120 | 1400 | 8541401000HP0320 |
| HP7070WR8WI | HP0321 | 5000K | 80 | 360 | 640 | 9.00 | 12.00 | 155 | 120 | 1400 | 8541401000HP0321 |
| HP7070WQ8WI | HP0322 | 5700K | 80 | 360 | 640 | 9.00 | 12.00 | 160 | 120 | 1400 | 8541401000HP0322 |
| HP7070WP8WI | HP0323 | 6500K | 80 | 360 | 640 | 9.00 | 12.00 | 165 | 120 | 1400 | 8541401000HP0323 |
| HP7070WD8WJ | HP0324 | 7600K | 80 | 360 | 640 | 9.00 | 12.00 | 168 | 120 | 1400 | 8541401000HP0324 |
