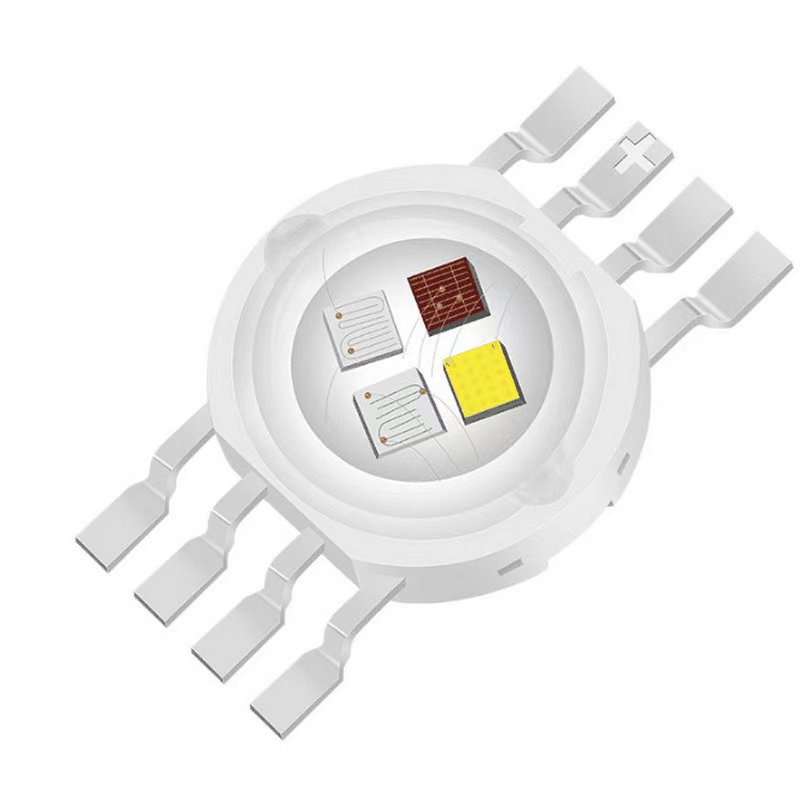

    High Power RGBW LEDs


    OVERVIEW

    High Power RGBW LEDs integrate red, green, blue, and white chips into a single package, offering superior color mixing and enhanced brightness. The addition of a dedicated white LED improves color accuracy, pure white illumination, and increased luminous efficacy, making these LEDs ideal for professional lighting applications that require both vibrant colors and high-quality white light.


    ELECTRICAL

    Type: high-power RGBW LEDs

    Size: 8.00mm x 5.15mm

    Power: 3-9W

    Voltage: 3V

    CCT: 2700K-7600K

    CRI: 80 ↑

    Color: white red, green, blue,

    Current: 300-700mA

    Efficiency: 100-160 lm/w

    Lens:Clear water

    Package substrate: copper

    Chip material: LGaP、GaAs、GaAsP、GaAlAs、GaN

    Chip brand: American Bridgelux, Toyota Gosei, Osram, Jingyuan, Sanan,

    Chip specifications: size 35-55mil, etc.;

    Divergence angle: 120°

    Certification standards: ROHS, REACH, EN60471.

    Working temperature: -40°C to +85°C

    FEATURES

    Four-in-One Color System: Combines RGB for full-color mixing and W for natural white illumination.

    High Brightness & Efficiency: Provides intense and uniform light output with optimized power consumption.

    Improved White Light Quality: Dedicated white LED ensures true white tones without color distortion.

    Excellent Heat Dissipation: Advanced thermal management system for long-lasting performance.

    Wide Viewing Angle: Ensures even light distribution across large surfaces.

    PWM & DMX Control Compatibility: Supports precise brightness and color adjustments for dynamic effects.

    Compact & Durable Design: Engineered for high-power applications with long lifespan and stability.

    APPLICATION

    ✅ Architectural & Decorative Lighting

    ✅ Stage & Entertainment Lighting

    ✅ Smart & IoT Lighting

    ✅ Horticultural & Aquarium Lighting

    ✅ Automotive & Specialty Lighting

    ✅ Display & Digital Signage

    Our high-power RGBW LEDs deliver superior brightness, enhanced color mixing, and reliable performance for a wide range of applications. Contact us for custom LED solutions tailored to your specific lighting needs!

    High Power RGB LEDs

    Product performance of Queendom LEDs  at  350ma Atest current, Tj=25°C

    RODUCTRANK NO. PEAKWAVELENGTH   (nm)  CCT/K FLUX    (lm)VOLTAGE   (V)TYPICAL DEGTEST PART NUMBER
    NMMINMAXMINMAXMINMAX 2Ө 1/2(mA)
    PRGBWBWFSL2403Red63564534651.82.41203008541401000SL2403
    Green520535751202.83.2300
    Blue46047026552.83.2300
    White300075001101602.83.2300
